Insulated Sleeves
- 3 types of sleeves available

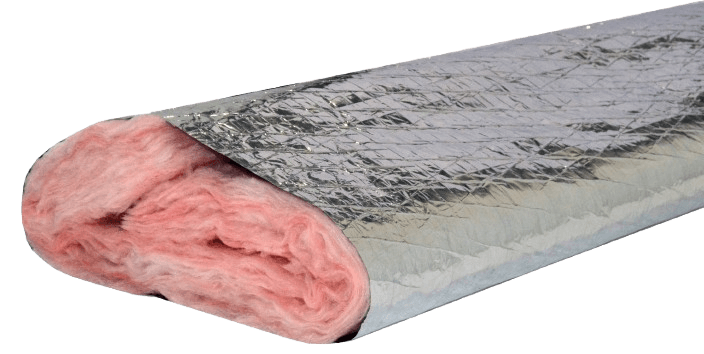

- Silver Sleeve metalized polyester

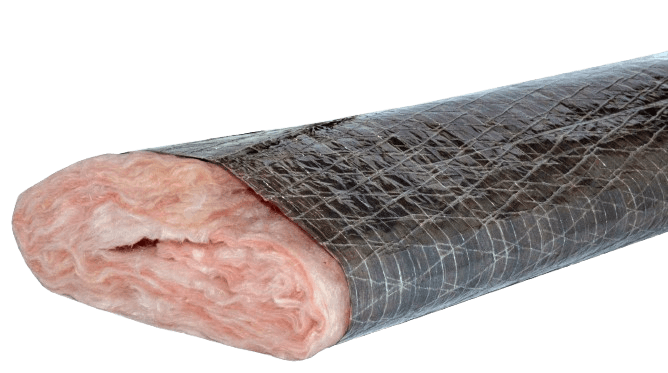

- Gray Sleeve non-metalized polyester

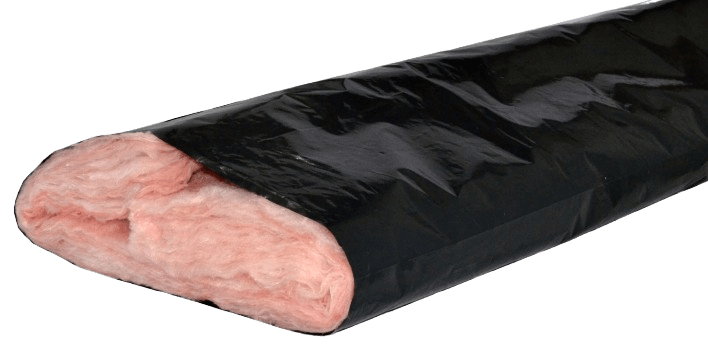

- Black Sleeve Polyethylene
- Lightweight and flexible/installs easily and quickly
- Tear and puncture resistant jacket
- Helps Lower energy bills
- Thick fiberglass insulation helps prevent condensation
- Easy to cut for applications needing less than 5’ or to join more than one 5’ piece.
- Improved Installation time savings over duct wrap product.
- Provides improved pipe acoustical performance.
- Improves Thermal Efficiency of pipe.
Performance Data
Code Compliance
Meets requirements of U.L.181, SBCC, BOCA, NFPA 90A and 90B, HUD 515-2.1 (b)
R-Value
R-Value 4.2, 6.0, and 8.0 determined in accordance with Adc Flexible Duct Performance and Installation Standards as published(1991) per ASTMC-518 at installed wall thickness in flat configuration.
Rated Pressure
10″ positive, 3/4″ W.G. negative per U.L.181.*
Maximum Operating Temperatures
-20 F to 250 F
Fire Safety Rating
U.L. 181 (Flame spread less than 25, smoke developed less than 50)
Product Spec Sheet
Complete technical specifications for all Metalized Polyester Insulated Flex Duct Models.
Installation Instructions
Pallet Quantities
- 26 pallets per truckload
- Perfectly compressed
- Stackable
- Water resistant for temporary outside storage
- Strapped & bagged for guaranteed retention
- 20” (24” R-8) package length; requires less storage
Sizing and Packaging Details
- Length 5’
- Diameter: R4.2, R-6: 4”, 5”, 6”, 7”, 8”, 9”, 10”, 12”, 14”, 16”, 18”, 20”
- Packaging:
- R4.2, R-6: 10 Pieces per box
- R8 4”-12”: 10 Pieces per box
- R8 14”-20”: 5 Pieces per box
- Each box ships with one starter cap included
- 26 pallets per truckload
- Stackable
- Available in Silver, Black, Gray Jackets
- Patented core technology
